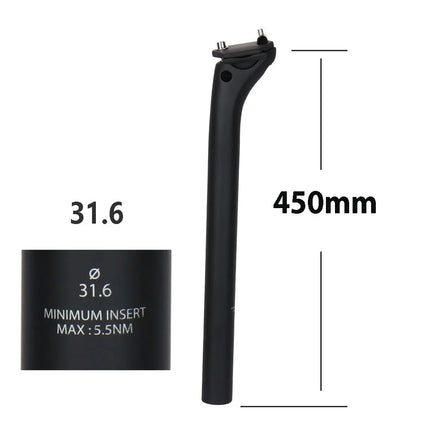

ELITAONE MTB Carbon Seat Post - Offset 20mm, Sizes: 25.4/27.2/30.9/31.6mm, 350-450mm, 150g

Description

Specifications:

  • Brand Name: ELITA ONE
  • Origin: Mainland China
  • High-Concerned Chemicals: None
  • Material: Carbon Fiber
  • Type: Bicycle Seat Post
  • Clamp Diameter Options: 25.4mm, 27.2mm, 30.9mm, 31.6mm
  • Lengths Available: 350mm, 400mm, 450mm
  • Setback: 20mm
  • Screw Material: Stainless Steel
  • Maximum Load Weight: 120kg
  • Torque Specification: 5.5Nm

Additional Features:

  • Clamp Compatibility: Suitable for Ø 7mm or 7x9mm, 7x10mm carbon rails (oval)
  • Saddle Angle Adjustment: 0-27 degrees
  • Minimum Insertion Depth: 100mm
  • Finish: UD Matte Black

Installation Instructions

  1. Seat Tube Tightening Torque:

    • For metal bicycle frames: Tighten to 4Nm
    • For carbon fiber frames: Tighten to 4.5Nm

  2. Saddle Clamp Tightening Torque:

    • For metal rails: Tighten to 4.5Nm
    • For carbon rails: Tighten to 4.5-5Nm

  3. Installation Warnings:

    • Ensure that the clamp opening is offset from the frame opening during installation to avoid concentrated stress, which may cause the seat post to crack.
    • Note: For openings at both the front and rear, the seat post clamp should be offset to the side.

Suggestion: Insert the seat post into the frame by at least 10cm.

Read more

ELITAONE MTB Carbon Seat Post - Offset 20mm, Sizes: 25.4/27.2/30.9/31.6mm, 350-450mm, 150g

Product form

Specifications: Brand Name: ELITA ONE Origin: Mainland China High-Concerned Chemicals: None Material: Carbon Fiber Type: Bicycle Seat Post Clamp Diameter Options: 25.4mm, 27.2mm, 30.9mm, 31.6mm Lengths... Read more

SKU: 14:173#25.4x400mm

$66.11 $58.99 INC GST

    🚚 Estimated Delivery: May 04, 2025 - May 18, 2025

    • Shipped today? Order within: Apr 20, 2025 17:00:00 +1000

    Description

    Specifications:

    • Brand Name: ELITA ONE
    • Origin: Mainland China
    • High-Concerned Chemicals: None
    • Material: Carbon Fiber
    • Type: Bicycle Seat Post
    • Clamp Diameter Options: 25.4mm, 27.2mm, 30.9mm, 31.6mm
    • Lengths Available: 350mm, 400mm, 450mm
    • Setback: 20mm
    • Screw Material: Stainless Steel
    • Maximum Load Weight: 120kg
    • Torque Specification: 5.5Nm

    Additional Features:

    • Clamp Compatibility: Suitable for Ø 7mm or 7x9mm, 7x10mm carbon rails (oval)
    • Saddle Angle Adjustment: 0-27 degrees
    • Minimum Insertion Depth: 100mm
    • Finish: UD Matte Black

    Installation Instructions

    1. Seat Tube Tightening Torque:

      • For metal bicycle frames: Tighten to 4Nm
      • For carbon fiber frames: Tighten to 4.5Nm

    2. Saddle Clamp Tightening Torque:

      • For metal rails: Tighten to 4.5Nm
      • For carbon rails: Tighten to 4.5-5Nm

    3. Installation Warnings:

      • Ensure that the clamp opening is offset from the frame opening during installation to avoid concentrated stress, which may cause the seat post to crack.
      • Note: For openings at both the front and rear, the seat post clamp should be offset to the side.

    Suggestion: Insert the seat post into the frame by at least 10cm.
